IDC Connector Terminal Block Interface Modules 50 Poles With
Excellent Stability
With the development of microelectronics technology, PLC and DCS
technologies have been rapidly developed and applied on a large
scale. The functions of conventional instrumentation and unit
control instruments have been replaced by highly integrated control
systems, enabling industrial devices to achieve more flexible
control. Plan and bring great convenience for maintenance and
repair.
1. A full range of modular structures: The series of products that
are designed as modular structures in the control cabinet's wiring
accessories, including signal input and output, power distribution,
etc., adopt standard installation dimensions, transparent
components and arrangements, indicating at a glance, both beautiful
and Fast.
2,Comprehensive functions: It has multiple functions such as signal
isolation and driving, loop power supply, card power supply, signal
indication, alarm indication, loop protection, power protection,
signal transfer, etc. It can support multiple brand safety barriers
and isolators, and comprehensive Improve the quality of wiring.
3. Simplified design and wiring: The type of jumper on the board
solves the problem of differentiation and complication of wiring
between external devices and system cards. The signal transmission
and the power supply are organically combined. The same card can
connect different types of instruments and signals. Only the jumper
on the board is changed and the line node is reduced. The
in-platform construction drawings are simplified into simple forms,
which reduce the dependence of the complex lines on the drawings
and thoroughly simplify the design of the construction drawings and
the process of wiring in the trays.
4. Eliminating the terminal block: The plug-in terminal block
provided on the external terminal can facilitate the maintenance of
the terminal. The replacement of the terminal board may not remove
the connection. The spring terminal has the characteristics of
quick connection, reliable crimping and low failure rate. The
1~2.5mm2 wire can be directly connected to the terminal board, and
there is no need to specially equip the terminal block. The
internal terminal uses a dedicated interface and uses special
cables to quickly plug in the PLC or DCS.
5, all-round protection, do not remove the line to stop the table,
omitting the distribution switch, to avoid misuse: Each signal
circuit is equipped with a convenient insurance to facilitate the
provision of a full range of security, the user no longer need to
be equipped with power distribution for external devices Switch and
fuse terminals. Specially solves the problems of DCS and PLC system
peripheral meter stopwatch. To repair and dismantle the external
equipment, it is necessary to remove the insurance without removing
the wire, which is fast, efficient, safe and reliable to prevent
misconnection. The power circuit uses overvoltage, overcurrent, and
reverse polarity protection measures to ensure the safe operation
of the system equipment.
6. LED indication and non-wire stripping current measurement for
convenient maintenance and repair: The power supply circuit and
signal circuit are equipped with full LED signal indication and
fuse fuse alarm, with clever not disconnected signal measurement
signal current technology, measuring signal current as long as the
current meter pen The test hole can be inserted, and the entire
measurement process equipment can be continuously powered without
affecting the normal measurement and control process, providing
great convenience for maintenance work.
7, rapid assembly: the use of a special installation with a
standard modular aperture back plate, you can throw away drilling
tools, just a screwdriver to complete the installation of
electrical components in the cabinet.
♦ Features
-- Support most of PLC output interface
-- Standard DIN rain mounted
-- High quality connectors with excellent stability
-- Models available with Phillips screw, slotted screw
-- Greatly savings in wiring and wiring Work
-- Easy for inspection and maintenance
-- Compact slim 49mm width
♦ Typical Applications
• Micro-controller • PLC control • Servo System
• Electro-magnetic valve • DC Motors • CNC machine
• Home intelligent control
♦ Technical data

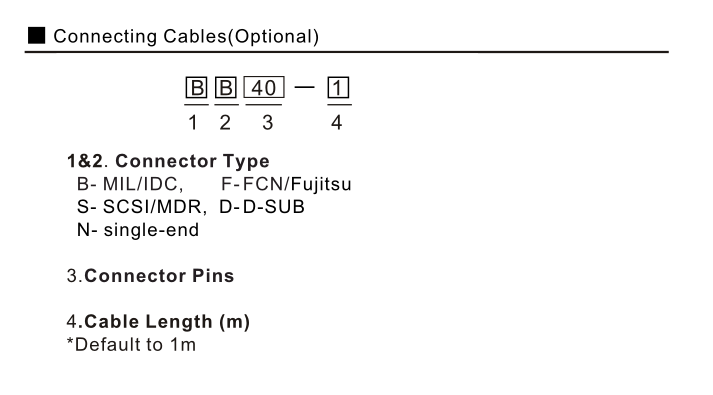

| Model | JR-50TBC |
| Connector type | IDC(MIL) |
| I/O poles | 50 |
| Wiring method | Euro terminal (slotted screws) *Japanese terminal (Phillips screws) can be customized |
| Rated current | 1A |
| Rated voltage | DC24V |
| Insuration resistance | 100MΩ min. (at 500VDC) |
| Dielectric strength | 500VAC 1min |
| Ambient operating temperature | -20℃~+55℃ |
| Applicable wires | AWG 22-16(0.3~1.25mm2),6~7mm |
| Suitable Uses | Panasonic FPΣ PLC |
| Dimensions(LxWxH) | 49×46mm |
| Mounting | DIN rail |
