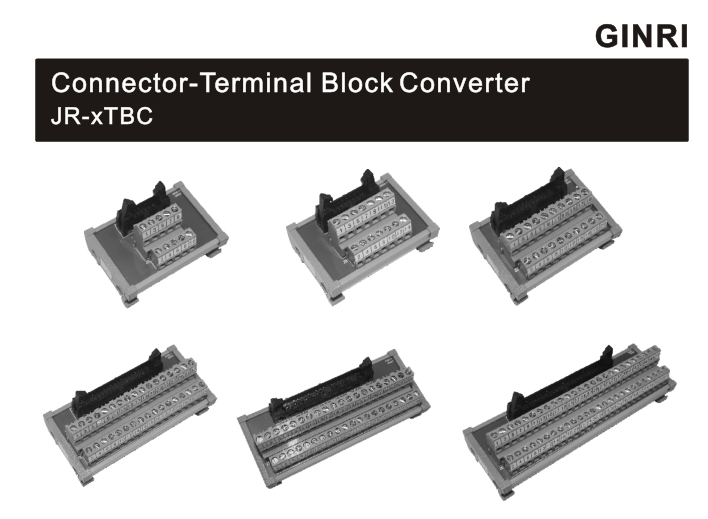

    Home Intelligent Control IDCModule , IDC Adapter Module 40 Pin Terminal Block

    Ask Lasest Price
    Brand Name : GINRI
    Model Number : JR-40TBC
    Certification : CE,CCC
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 20000Pcs per month
    Delivery Time : 1-30 days upon order quantity
    • Product Details
    • Company Profile

    Home Intelligent Control IDCModule , IDC Adapter Module 40 Pin Terminal Block

    Home Intelligent Control IDCModule , IDC Adapter Module 40 Pin Terminal Block


    Terminals are an accessory product used to make electrical connections and are classified industrially as connectors. With the increasing degree of industrial automation and increasingly stringent and precise industrial control requirements, the amount of terminal connections has gradually increased. With the development of the electronics industry, there are more and more terminals used, and more and more types.


    A terminal block is an electrical component that is used to connect a line in an electrical device. The number of terminal points in each row of terminal blocks is different, and the model number can be determined according to the needs of engineering technical parameters.


    Terminal board is a product that came into being according to this need. It introduced a brand-new control cabinet assembly concept. This product will design the wiring accessories in the control cabinet into a series of products with modular structure, including various analog and digital signal input and output, power distribution, etc., using a unified standard installation size, component transparent design, instructions at a glance.


    ♦ Features

    -- Support most of PLC output interface

    -- Standard DIN rain mounted

    -- High quality connectors with excellent stability

    -- Models available with Phillips screw, slotted screw

    -- Greatly savings in wiring and wiring Work

    -- Easy for inspection and maintenance

    -- Compact slim 49mm width


    ♦ Typical Applications

    • Micro-controller • PLC control • Servo System

    • Electro-magnetic valve • DC Motors • CNC machine

    • Home intelligent control


    ♦ Technical data

    ModelJR-40TBC
    Connector typeIDC(MIL)
    I/O poles40
    Wiring method

    Euro terminal (slotted screws)

    *Japanese terminal (Phillips screws) can be customized

    Rated current1A
    Rated voltageDC24V
    Insuration resistance100MΩ min. (at 500VDC)
    Dielectric strength500VAC 1min
    Ambient operating temperature-20~+55
    Applicable wiresAWG 22-16(0.3~1.25mm2),6~7mm
    Suitable UsesPanasonic FPΣ PLC
    Dimensions(LxWxH)49×46mm
    MountingDIN rail
