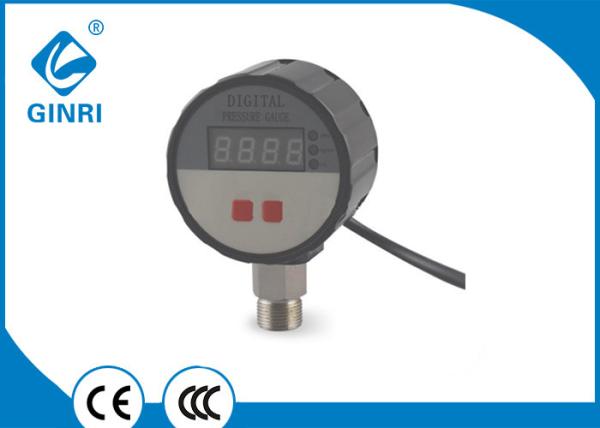

Water Digital Pressure Gauge LCD Over / Under Pressure Protector -0.1 To 60 MPa

    Buy cheap Water Digital Pressure Gauge LCD Over / Under Pressure Protector -0.1 To 60 MPa from wholesalers

    Buy cheap Water Digital Pressure Gauge LCD Over / Under Pressure Protector -0.1 To 60 MPa from wholesalers
    • Buy cheap Water Digital Pressure Gauge LCD Over / Under Pressure Protector -0.1 To 60 MPa from wholesalers

    Water Digital Pressure Gauge LCD Over / Under Pressure Protector -0.1 To 60 MPa

    Ask Lasest Price
    Brand Name : GINR
    Model Number : DPR-B80
    Certification : CE
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 20000Pcs per Month
    Delivery Time : Within 7 days
    • Product Details
    • Company Profile

    Water Digital Pressure Gauge LCD Over / Under Pressure Protector -0.1 To 60 MPa


    Water Pressure Gauge Digital LCD Over/Under Pressure Protector -0.1 to 60 MPa Vacuum Pump 80mm


    ♦ Features

    -- 4 digital LED display pressure, Accuracy0.5%

    -- Three pressure units available ( Psi, Kgf/cm2 , Mpa)

    -- Anti-electromagnetic interference design

    -- Zero clearing with one button


    ♦ Typical Applications

    Machine Automation Engineering Machinery

    Electromechanical Integration Equipment Pump&compressor

    Hydraulic System Medical project Pipeline engineering


    ♦ Specification


    Pressure range

    General type:0~1, 2, 3, 4, 5, 10, 20, 30, 40, 50, 60Mpa

    Micro type:0~0.2, 0.5Mpa

    Negative type: -0.1~0.1Mpa

    Pressure unitMPa,kgf/cm2,PSI adjustable
    Overload pressure150%
    Accuracy grade±0.5%FS
    Power supply24VDC,220VAC,380VAC
    Sampling frequency10 times/sec
    Operating temperature-20-80
    Compensation Temperature-10 ~60
    Measurement mediumGas, water, oil (compatible with 316 stainless steel)
    Electric protectionShort-circuit protection, reverse polarity protection, anti-electromagnetic interference design
    Pressure connector

    M20*1.5

    *for G1/2,G1/4 and other connector,please contact us first.

    Connector material304SS
    Optional moduleRS485 Modbus Communication protocol
    Dial diameter80mm
    Shell materialABS
    Mounting methodsRadial direction only
    Weight0.4Kg
