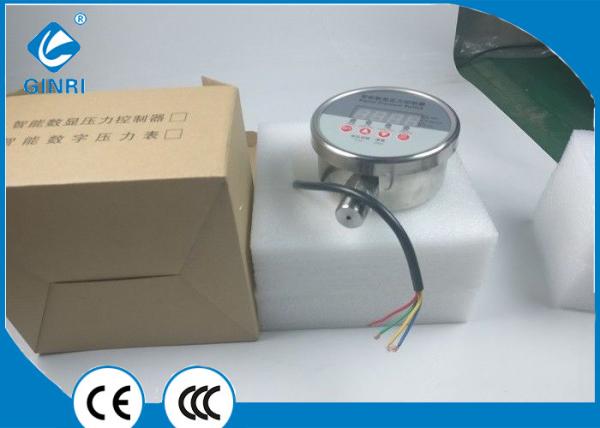

Gas Water Digital Pressure Switch Gauge 0.6Kg 4 Digital LED Display Pressure

The current domestic digital pressure switch technical indicators are as follows: ♦ 3-digit or 4-digit LED digital display, ignoring value error ♦ Upper and lower limit The two control points can be freely set to meet different control requirements. ♦ One-button clear function ♦ Shock resistance, strong anti-interference
MD-S series pressure switch has a delay control function, three display units can be arbitrarily switched, the error of a key to clear and other functions.

1, pressure display window
2. MPa unit indicator
3. Kg/cm unit indicator
4. PSI unit indicator
5. Running indicator
6. Lower limit indicator
7. High limit indicator
8. Power indicator
9. (ON/OFF) Run Key
10. Digit reduction key (▼)
11. Number increase key (▲)
12. Set the SET key
13. Pressure mounting port

♦ Features

-- 4 digital LED display pressure, Accuracy≤0.5%

-- Three pressure units available ( Psi, Kg/cm2 , Mpa)

-- Adjustable high & low pressure threshold and delay time

-- Adjustable control mode:normal control and reverse control

-- Pressure leak and loss protection,secure setting-up

-- Anti-electromagnetic interference design

-- Zero clearing with one button

♦ Protective Functions

● Upper limit alarm(high pressure)

● Lower limit alarm(low pressure)

● Pressure leak alarm

● Pressure loss alarm(no pressure)

♦ Typical Applications

• Machine Automation • Engineering Machinery

• Electromechanical Integration Equipment • Pump&compressor

• Hydraulic System • Medical project • Pipeline engineering

♦ Specification
