Compressor Digital Air Pressure Switch Three Pressure Units Available 10 Bar

The main functions of digital pressure gauges are simple operation, low price, anti-vibration, high control accuracy, and long service life.
The pressure switch has a delay control function, three display units can be arbitrarily switched, the error of a key to clear and other functions.

powered by
24VDC, 220VAC, 380VAC optional
Alarm point settings
Full scale can be set
output signal
Relay switch signal
load capacity
380V 3A 220V 5A 24V 5A
Operating temperature
-20°C to 80°C
Measuring medium
Compatible with 316L Stainless Steel
Wiring protection
Reverse polarity and short circuit protection
Installation interface
M20*1.5 G1/2 G1/4
Outgoing definition
Power Line: Red Blue Output Line: Black and White

♦ Features

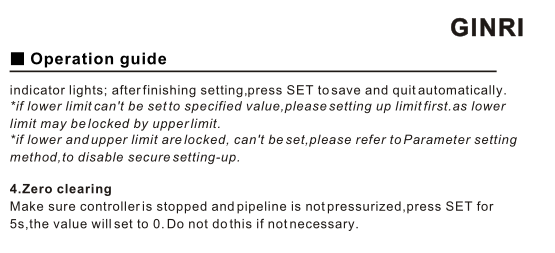

-- 4 digital LED display pressure, Accuracy≤0.5%-- Three pressure units available ( Psi, Kg/cm2 , Mpa)-- Adjustable high & low pressure threshold and delay time-- Adjustable control mode:normal control and reverse control-- Pressure leak and loss protection,secure setting-up -- Anti-electromagnetic interference design-- Zero clearing with one button

● Upper limit alarm(high pressure)● Lower limit alarm(low pressure)● Pressure leak alarm● Pressure loss alarm(no pressure)

• Machine Automation • Engineering Machinery• Electromechanical Integration Equipment • Pump&compressor• Hydraulic System • Medical project • Pipeline engineering

♦ Specification
