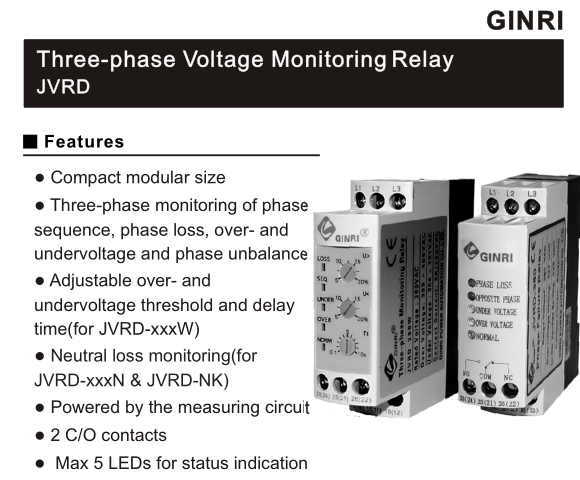

3 Phase Unbalance Time Delay Undervoltage Relay Compact Modular Size

The under voltage protector is a multi-function three-phase three-wire power system or three-phase power equipment monitoring and protection equipment. Sets three-phase voltage display, over-voltage protection, under-voltage protection, phase loss protection (phase protection), three-phase voltage imbalance protection, phase sequence protection (wrong phase protection) in one. It can be used to monitor important parameters (voltage, phase sequence, phase loss, and phase balance) in three-phase power supply system. It can send alarm signals in time to abnormal conditions that may endanger the safe and reliable operation of power systems and equipment. The system can be properly handled before the machine equipment is more damaged, so that the machine equipment and system can obtain the maximum degree of protection, improve the effectiveness of the machine, equipment and system, and reduce maintenance costs due to three-phase system failures. Maintenance time. Under-voltage protectors (also called three-phase power monitor, phase sequence protector, over-voltage protector, etc.) are mainly used for AC 50/60Hz, rated voltage below 660V, industrial three-phase 100V, 220V, 380V (400V), 440V (460V), 660V and other voltage level fault detection provides relay protection for three-phase input power supply voltage is too high, voltage is too low, phase failure, wrong phase (reverse phase sequence), three-phase voltage imbalance, etc. , It can be widely used in power distribution cabinets, distribution boxes, electric control boxes, power electronic devices, telecom communication room power supplies, etc. It is an indispensable protection product that maintains normal working voltage of industrial equipment during operation.

-- Compact modular size-- Three-phase monitoring of phase sequence, phase loss, over- and undervoltage and phase unbalance-- Adjustable over- and undervoltage threshold-- Adjustable trip time

-- Powered by the measuring circuit-- 2 C/O contacts-- 5 LEDs for status indication Protective Phase sequence-- Phase loss-- Overvoltage-- Undervoltage-- Phase unbalance

♦ Typical Applications

• Pumps • Fans

• Blowers • Motors

• Compressors

♦ Approvals

• CE • CCC

♦ Technical data

GINRI POWER AUTOMATION CO.,LTD. is a professional production voltage phase sequence protection device (and name: three-phase power monitor), and PLC output zoom Board, and smart type motor integrated protection device, and industrial parts manufacturers, technology development team in elevator industry, and refrigeration industry, and crane industry, environmental equipment, mechanical NC industry and the industrial following insurance industry, field has more than 10 years practice experience, has development out variety price economic and function excellent of products. CQC product quality system by China Quality Centre (3C) certification and CE certification, products in the manufacturing process in strict accordance with the ISO9001 quality assurance system requirements and professional technical and service support.

Voltage phase-sequence protection for many years (equipment, refrigeration equipment, crane (passenger and goods) elevators, control of DC power supply system (Cabinet) screens, precision air conditioners, room air conditioners, electric hoist, boiler equipment, laser equipment, parking equipment, cranes, compressors) and so on using the run.

PLC output amplifiers (environmental protection equipment, numerical control and automation equipment, automobile, plastic machinery, hydraulic machinery, ceramic foam machinery, woodworking machinery, machinery) and so on using the run.

Years of integrated Intelligent motor protector (power plants, paper mills, steel mills, aluminium plants, cement plants, sewage treatment plants, coal preparation plants, refineries, petrochemical plants), and so on using the run.

Product quality is stable and safe, reliable, and earned a solid market position in the market and a high reputation in the industry, received unanimous recognition and praise of our customers.

Ginri company always adhere to "scientific management as the core, the user needs for the Centre to focus on product quality, meticulous service is sincere," the spirit of enterprise, please call us from all walks of life, thank you!
